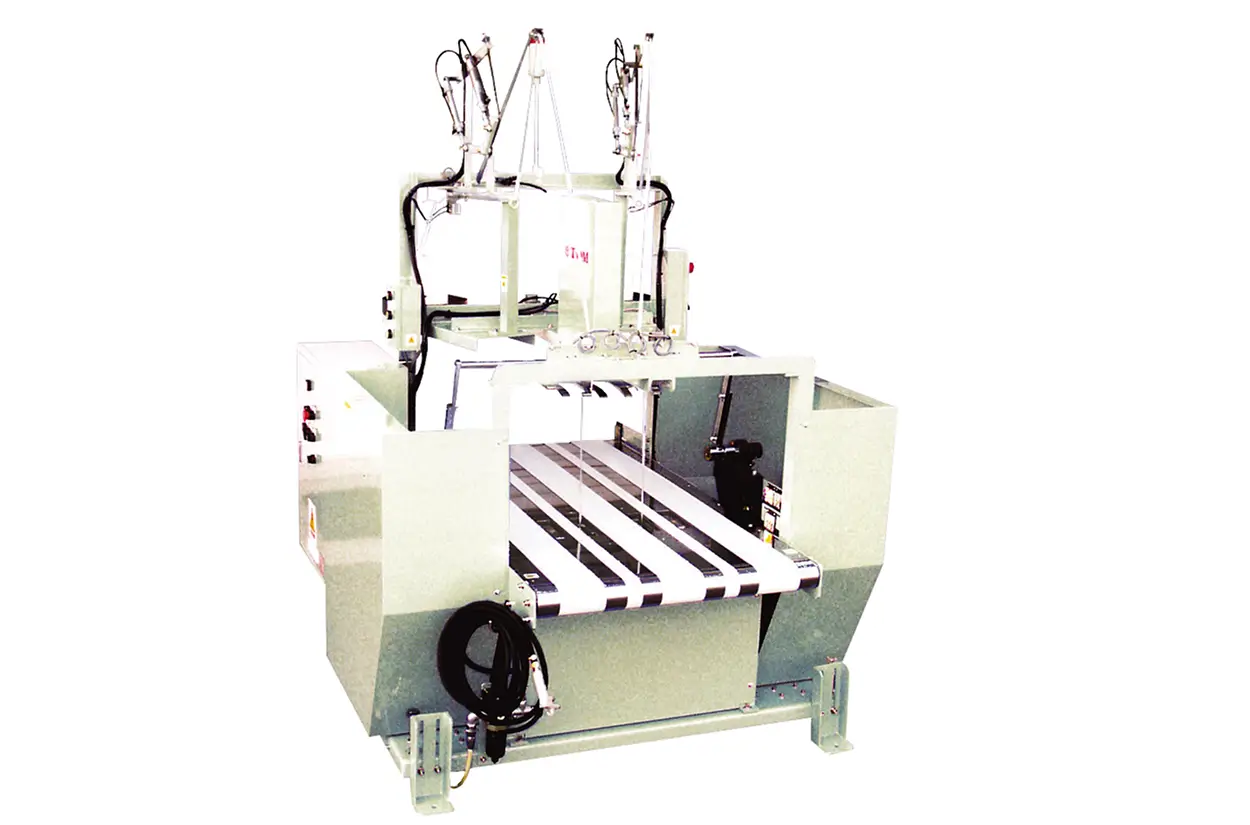

Automatic Linen Tying Machine

AS9

Feature

Size change unnecessary; range of dimensions are supported (in case of AS9-S5, width between both strings is 200 mm or 400 mm).

Items are secured firmly.

Double-tension construction reduces collapsing.

Proximity/photoelectric switch sensors reduce electrical faults.

Transfer belt is protected from machine oil and does not stain tying items.

Tying device can slide out for easy maintenance.

Specifications

Capacity

8 bundles/minute

Size-A

350~700 mm

Size-B

250~400 mm

Size-C

130~350 mm

Air Supply

30Nl/min(0.4kW)

Machine size

L:1,512 W:1,440 H:2,070
