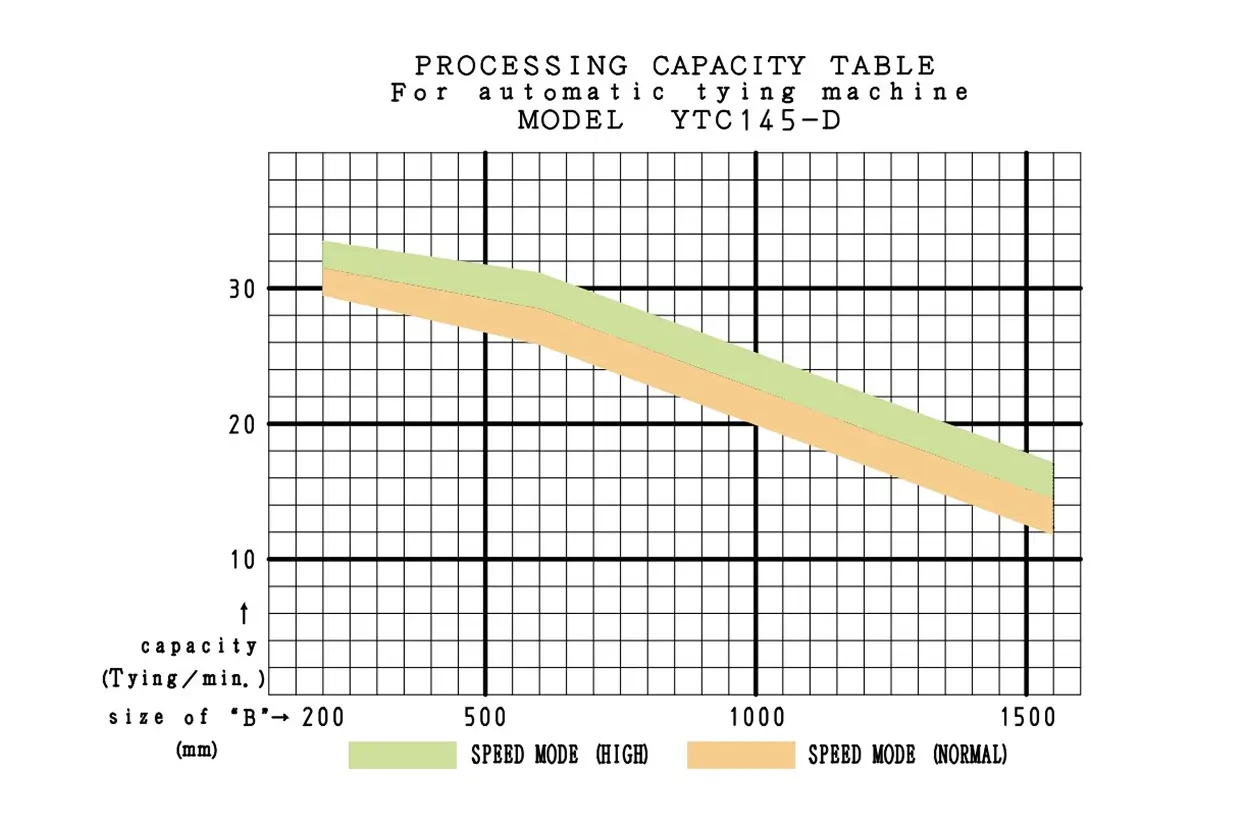

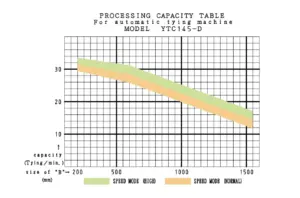

Capacity (Max-Speed): 30 bundles/minute
Free setting of gluer height supported
All set changes electrically driven
Datalink possible between gluer and palletizer
Contactless switch sensor operation reduces electrical faults
Knot point changer equipped as standard prevents damage to stack of cardboard
Input preset of cardboard size possible through touch panel
Fast and standard mode can be toggled according to operation process
30 bundles/minute

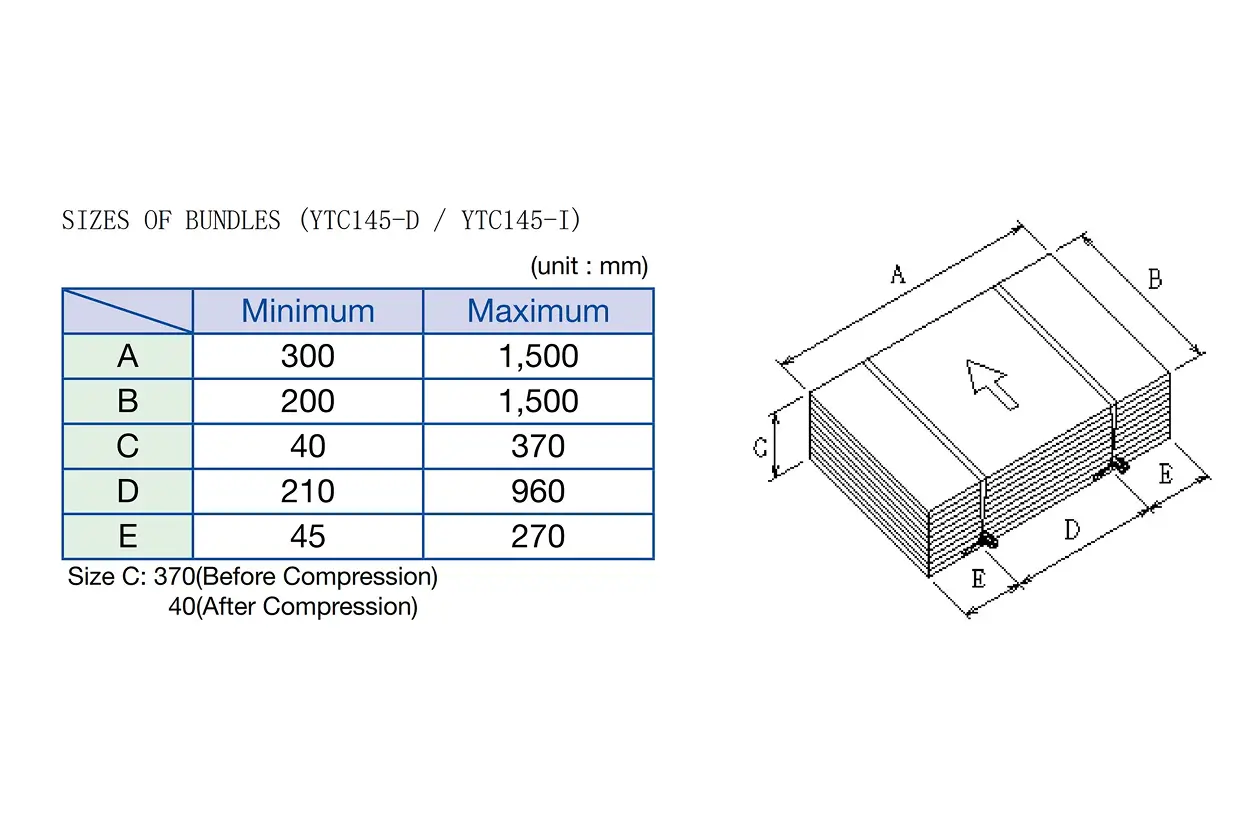

（B-size: 500mm, 10 sheets per bundle)
300~1500 mm
200~1500 mm
40~270 mm(370mm Before compression)
3.0kVA
800Nl/min(7.5kW)
Electrically Operated
(Data Link)

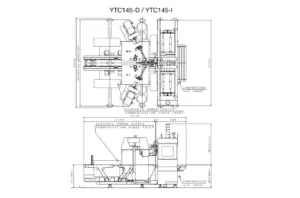

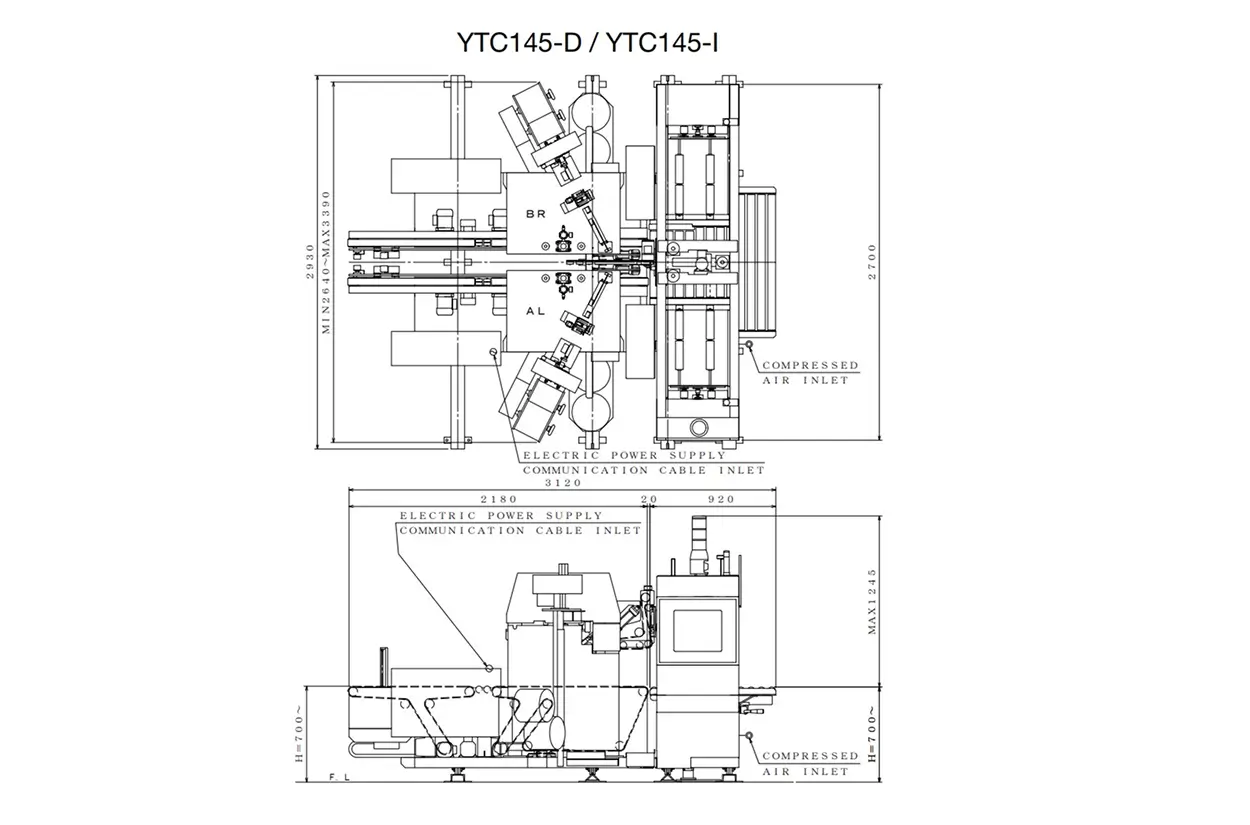

L:3,120 W:3,390 H:1,945~
Feed-in: 50~80m/min
Feed-out: 50~80m/min
700mm
Standard
Standard
Option
Option
Option
Option
