Capacity (Max-Speed): 25 bundles/minute
Free setting of gluer height supported
All set changes electrically driven
Datalink possible between gluer and palletizer
Contactless switch sensor operation reduces electrical faults
Knot point changer equipped as standard prevents damage to stack of cardboard
Input preset of cardboard size possible through touch panel
Fast and standard mode can be toggled according to operation process
25 bundles/minute
（B-size: 300mm, 20 sheets per bundle, Knot Point Changer unused）

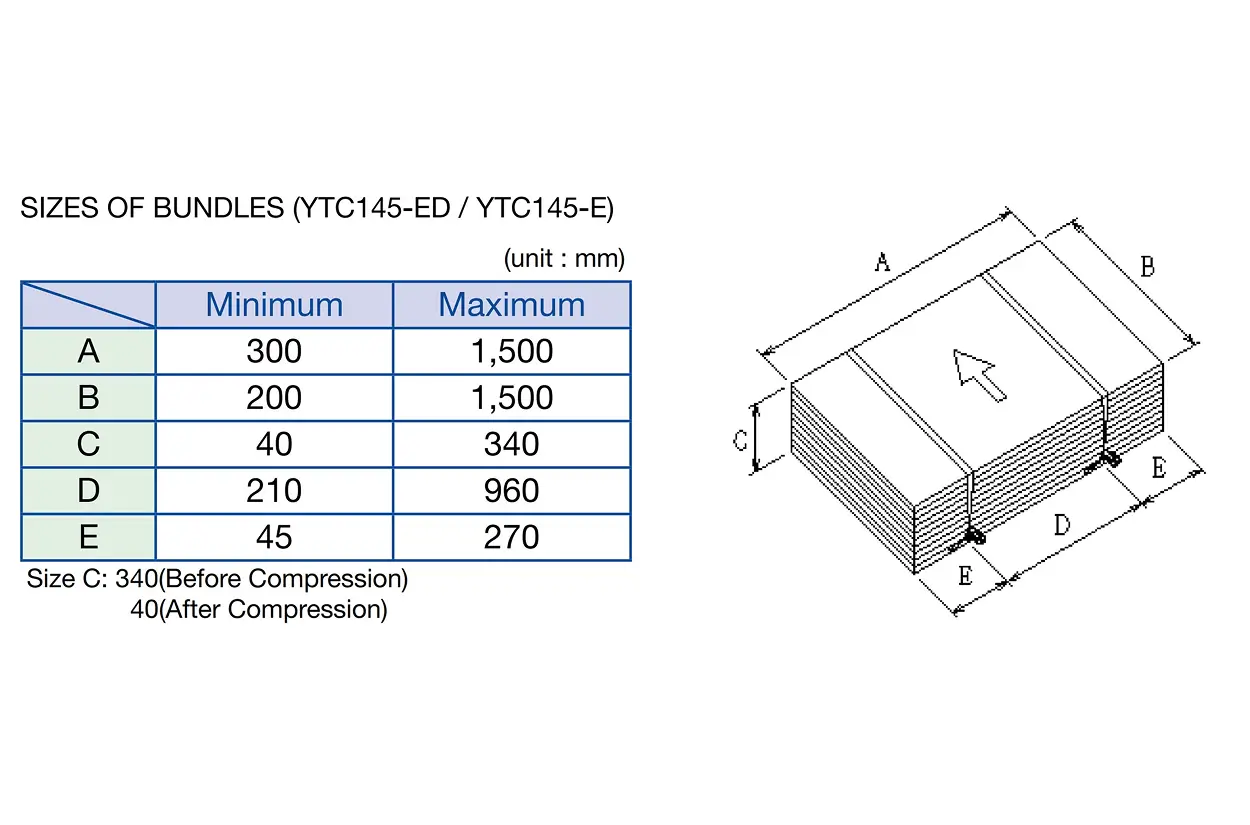

300~1500 mm
200~1500 mm
40~240 mm(340mm Before compression)
2.5kVA
600Nl/min(5.5kW)
Electrically Operated
(Data Link)

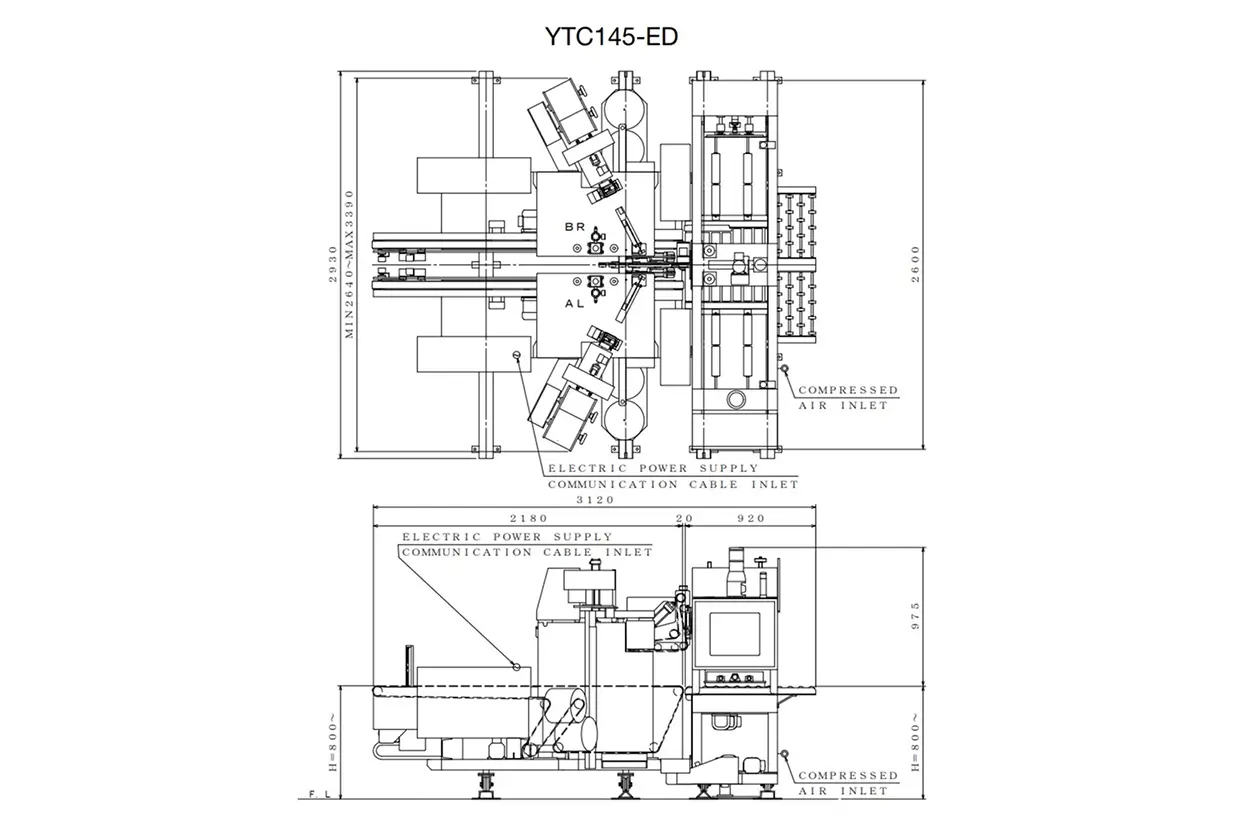

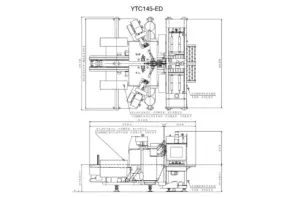

L:3,120 W:3,390 H:1,775~
Feed-in: 25m/min
Feed-Out: 60m/min
800mm
Standard
Standard
Option
Option
Option
Option
