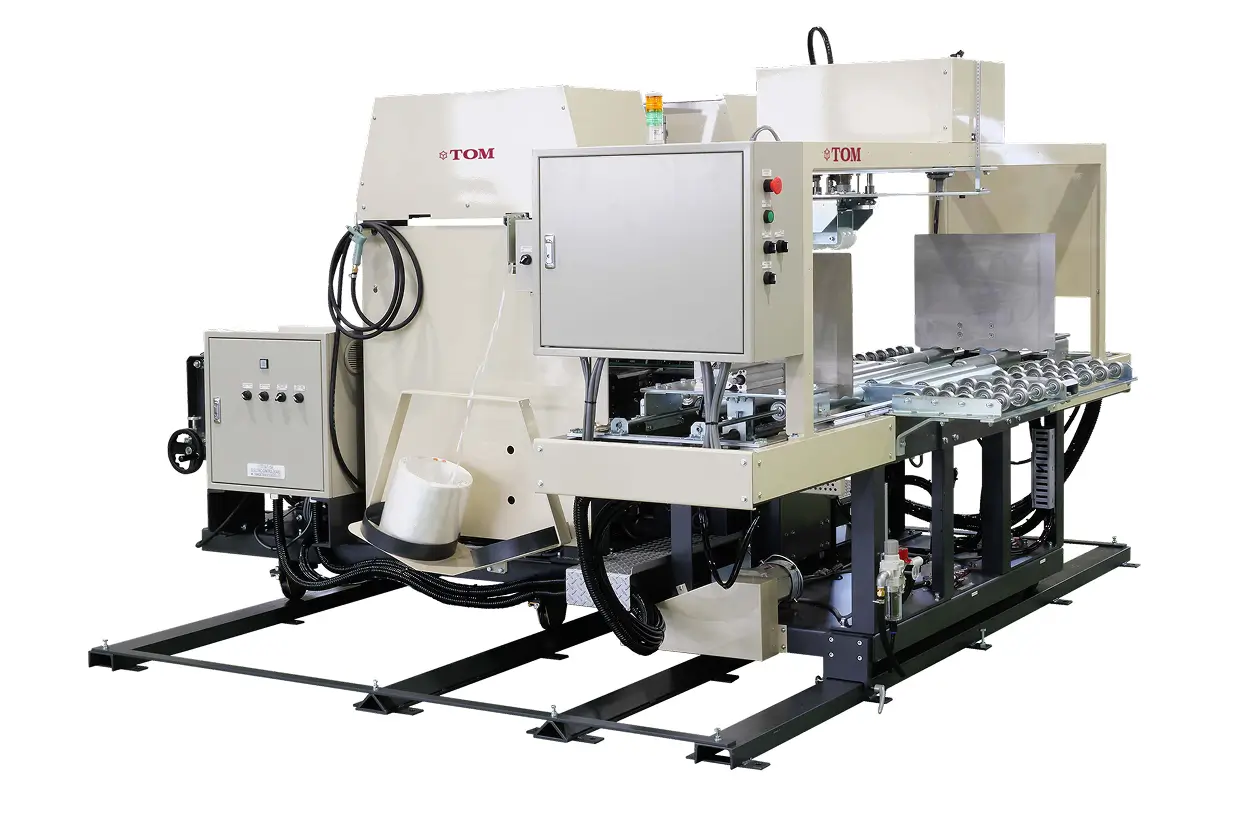

Automatic Tandem Tying Machine

YTC145-SE

Feature

Capacity (Max-Speed): 22 bundles/minute

Free setting of gluer height supported

Contactless switch sensor operation reduces electrical faults

Knot point changer equipped as standard prevents damage to stack of cardboard

Specifications

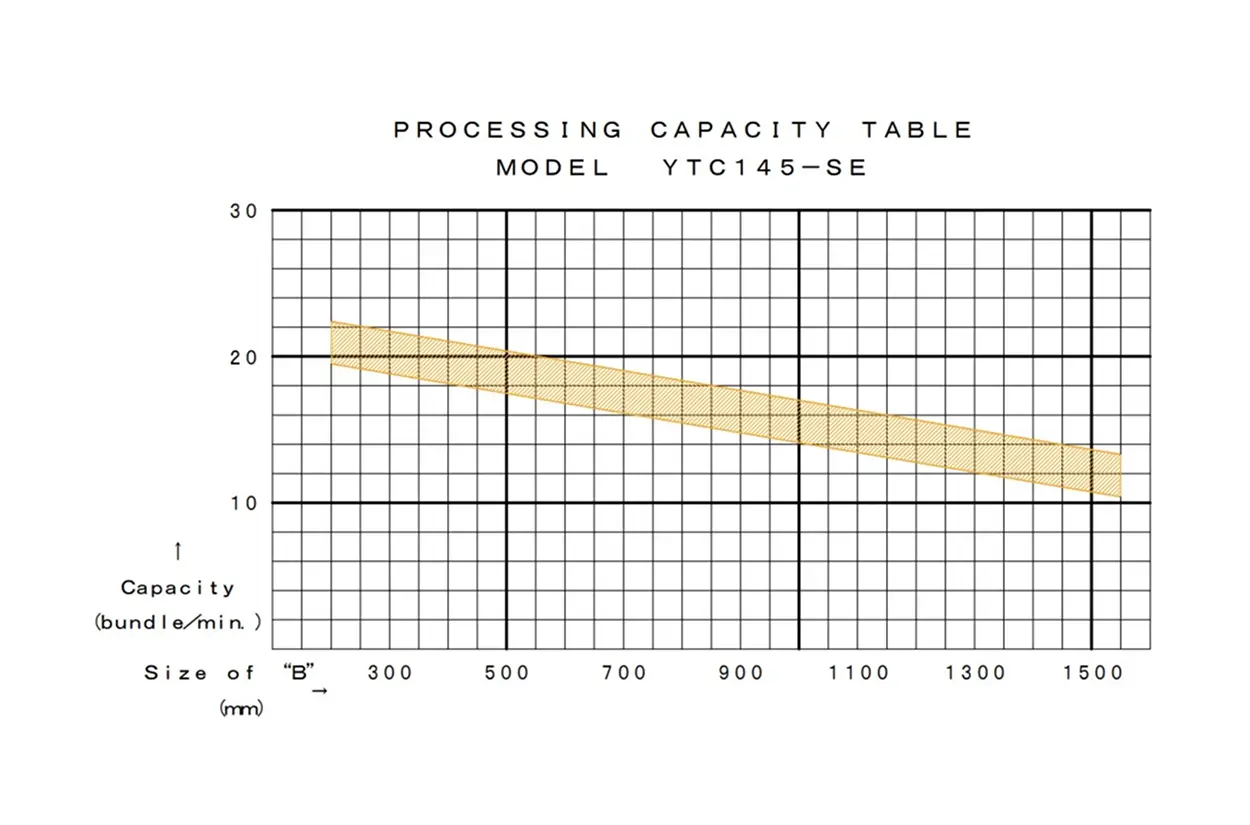

Capacity

22 bundles/minute
（B-size: Minimum, 20 sheets per bundle，Knot Point Changer unused）
20 bundles/minute
（B-size: 340mm, 20 sheets per bundle, Knot Point Changer unused）

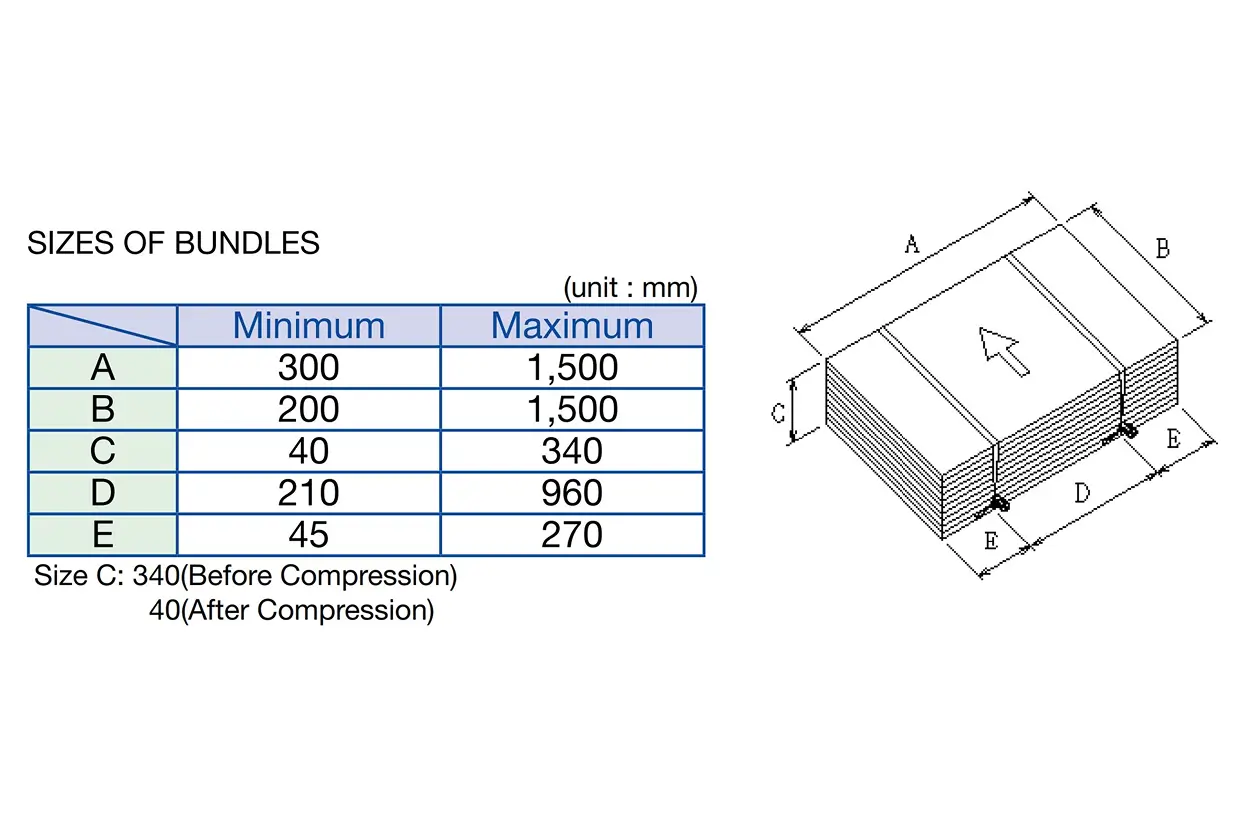

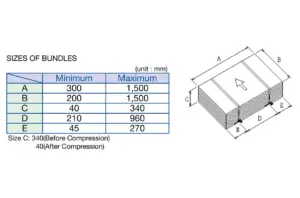

Size-A

300~1500 mm

Size-B

200~1500 mm

Size-C

40~240 mm(340mm Before compression)

Power Consumption

2.5kVA

Air Supply

600Nl/min(5.5kW)

Size Change

Electrically Operated
(Stopper-C: Manually Operated)

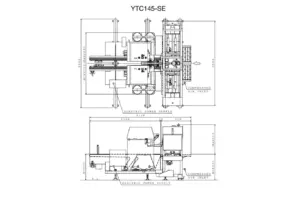

Machine size

L:3,120 W:2,730 H:1,775~

Conveyor Speed

Feed-in: 22m/min
Feed-Out: 50m/min

Minimum Height

800mm

Knot point changer

Standard

Twine Unfolding Device

Option
