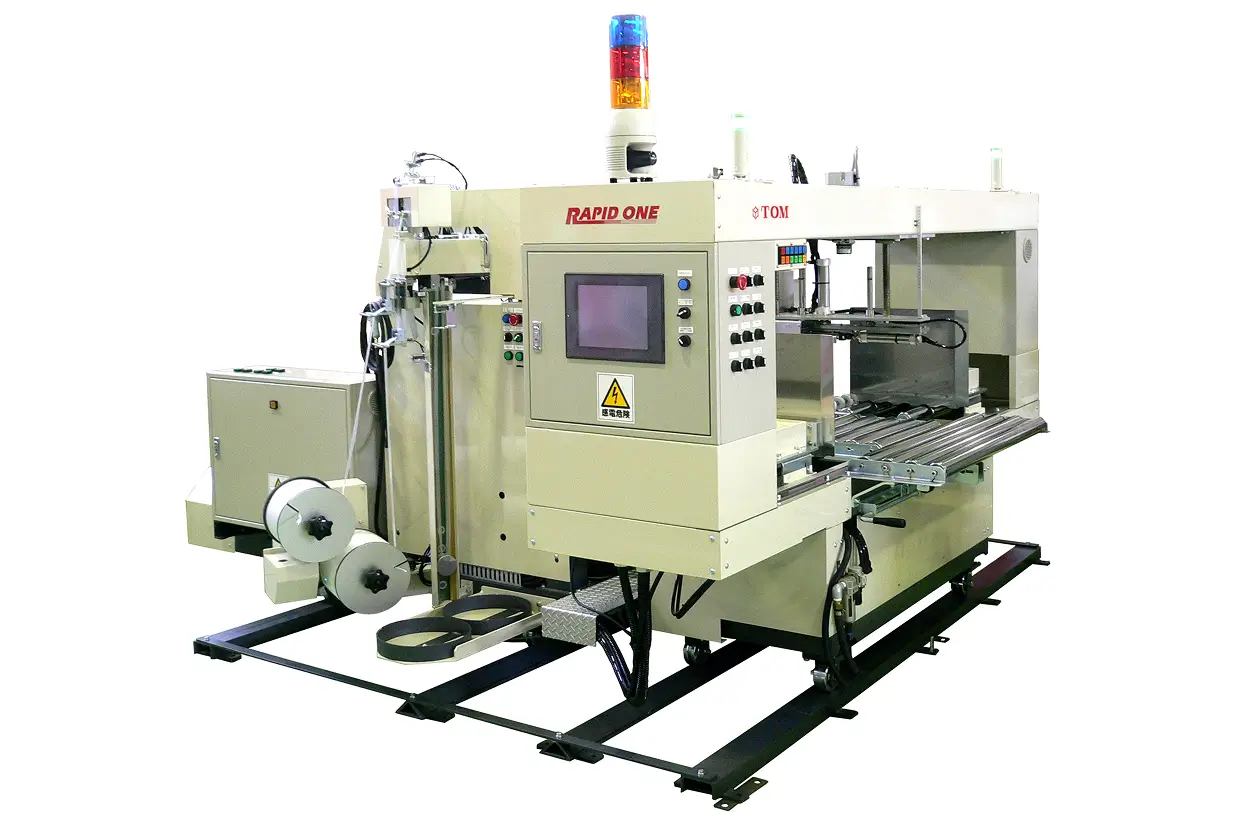

Fastest-ever RAPID-ONE Series

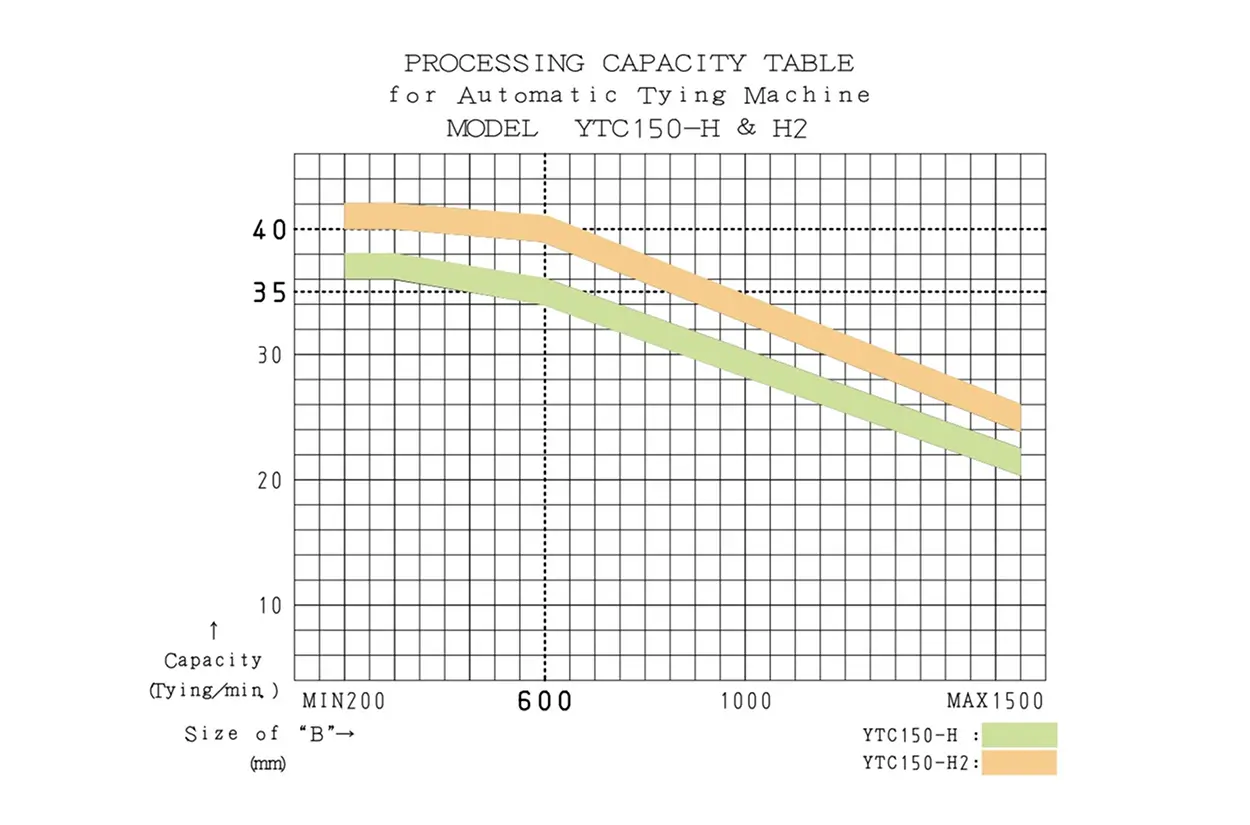

Capacity (Max-Speed): 35 bundles/minute
35 bundles/minute high-speed operation
(Dimension B: 600 mm, 10 sheets/bundle, used with knot point changer).
Multifunction touch panel installed as standard. Improved operational feel through intuitive visual control.
Top-arranger conveyer cushion configured as standard holds products securely without belt marks.
Adjustment to cardboard dimensions via recognition function enables optimal operating conditions.
Conveyer decelerates before each stopper, preventing recoil, falling or damage to cardboard from stoppage.
35 bundles/minute
（B-size: 500mm, 10 sheets per bundle)

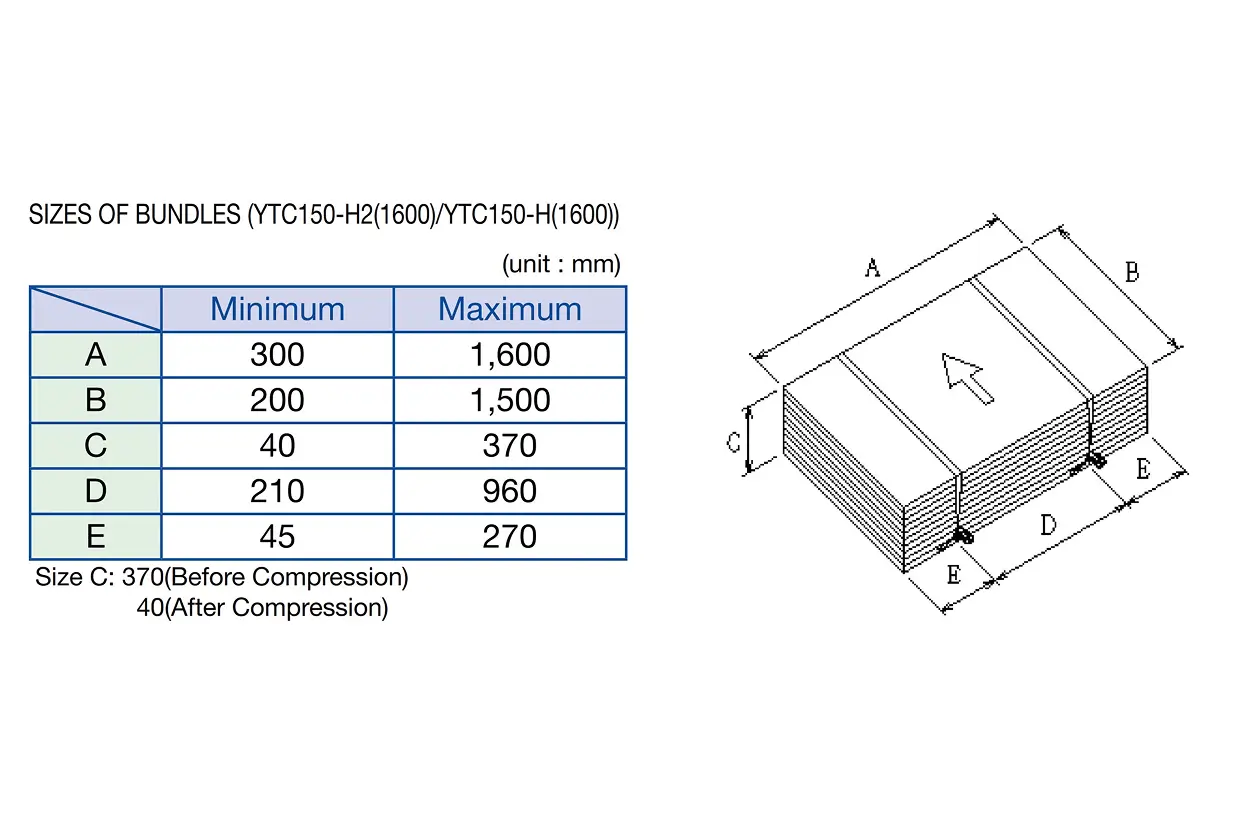

300~1600 mm
200~1500 mm
40~270 mm(370mm Before compression)
6.5kVA
1200Nl/min(11kW)
Electrically Operated
(Data Link)

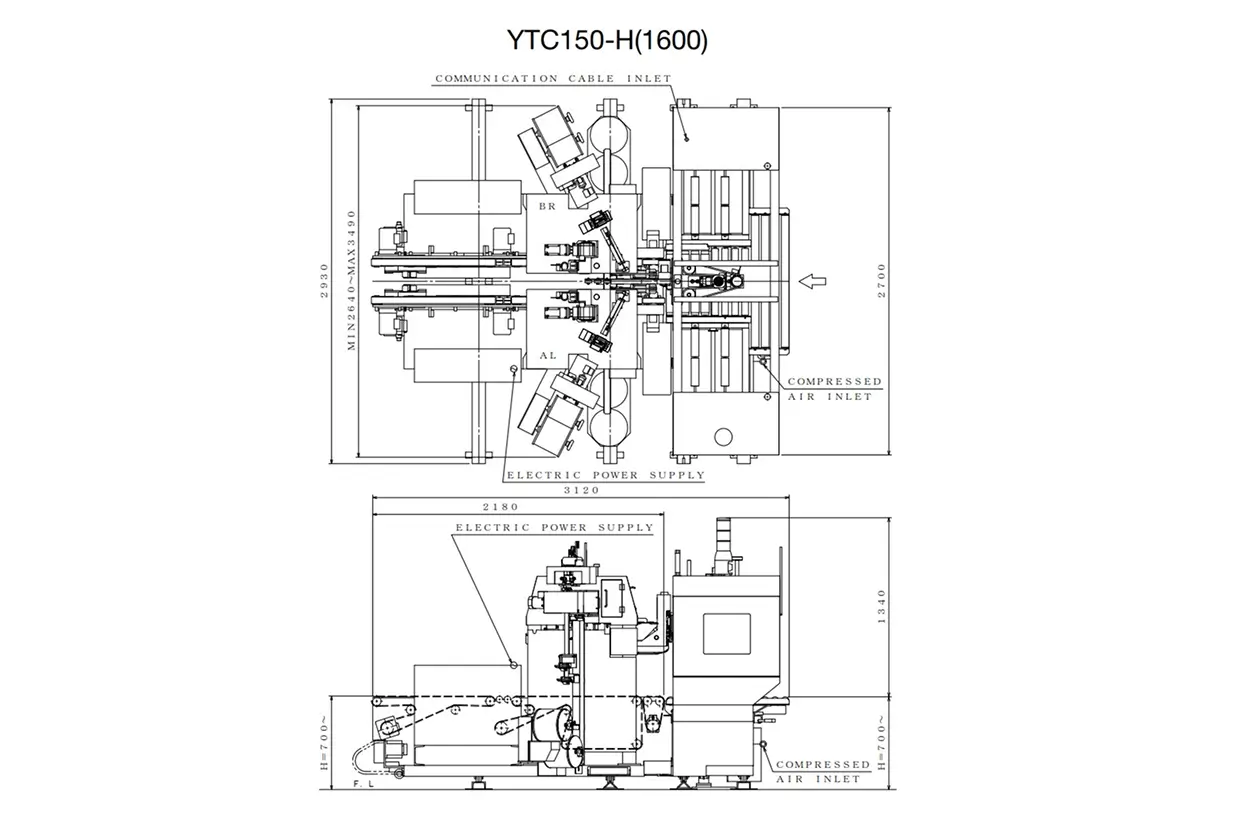

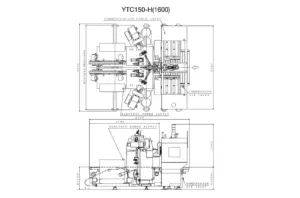

L:3,120 W:3,390 H:1,945~
Feed-in: 50~80m/min
Feed-out: 50~80m/min
700mm
Standard
Standard
Standard
Option
Standard
Option
