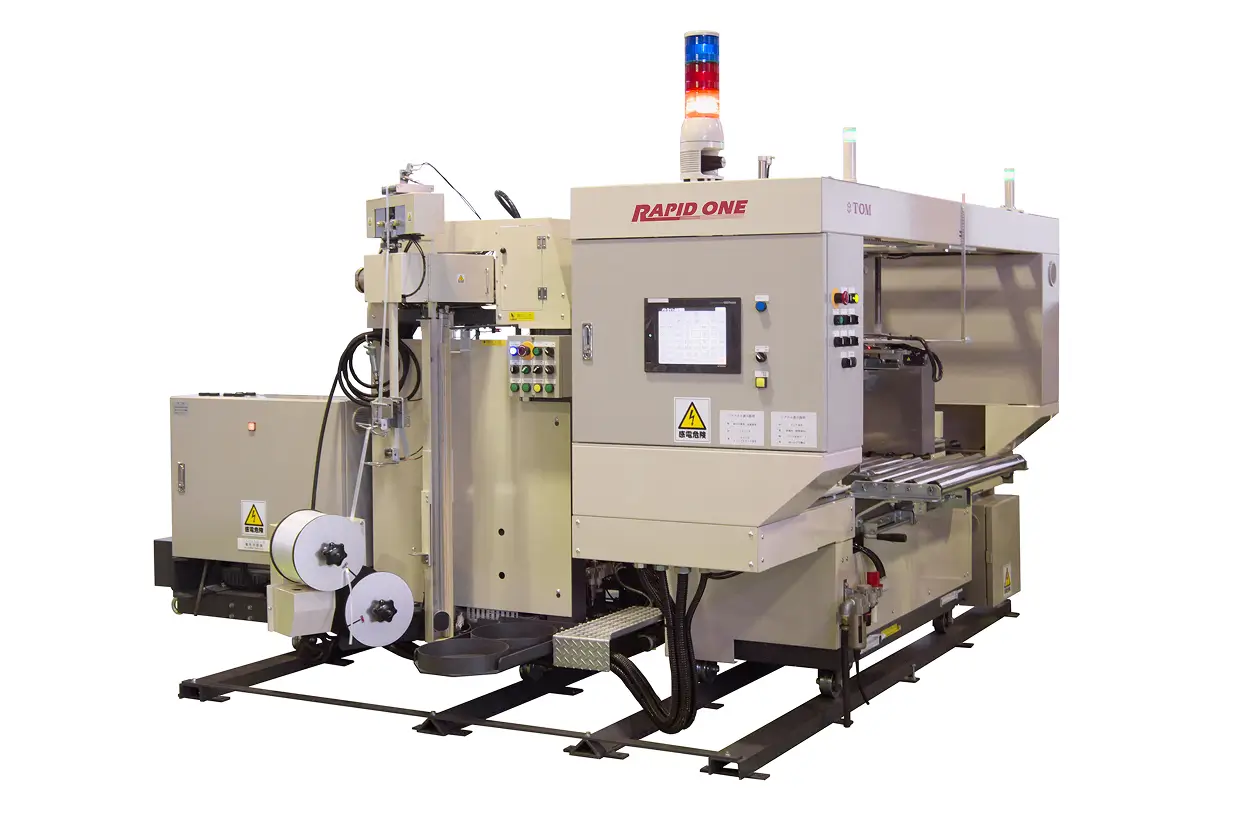

Fastest-ever RAPID-ONE Series
Capacity (Max-Speed): 40 bundles/minute
40 bundles/minute high-speed operation
(600 mm long in feed direction, 10 sheets/bundle).
Stable high-speed operation even for large sizes
(33 bundles/minute possible with 1000 mm long in feed direction)
Non-crush rollers in sliding top-press minimize damage to cardboard.
Update to press-driven system from servo motor allows simple adjustment of pressure.
Quantity checker installed as standard.
40 bundles/minute
（B-size: 500mm, 10 sheets per bundle)

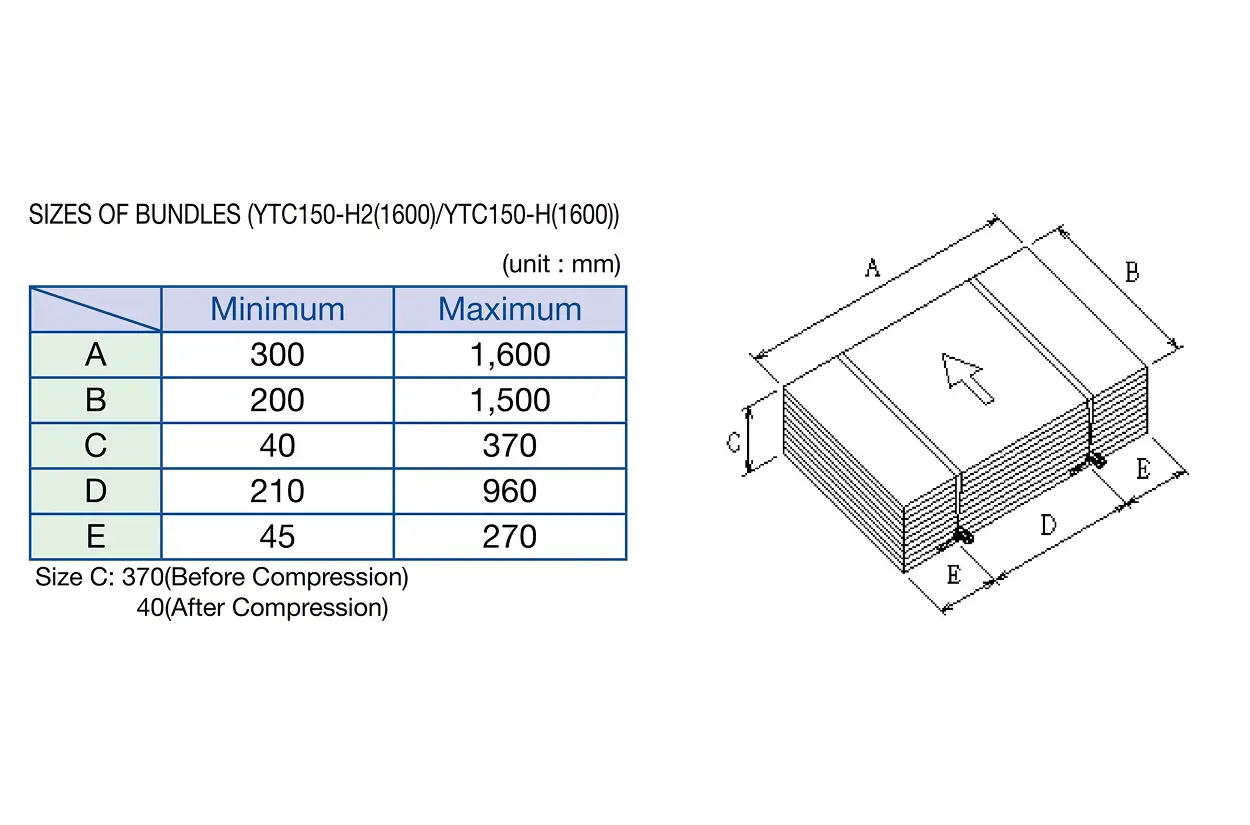

300~1600 mm
200~1500 mm
40~270 mm(370mm Before compression)
8.0kVA
1200Nl/min(11kW)
Electrically Operated
(Data Link)

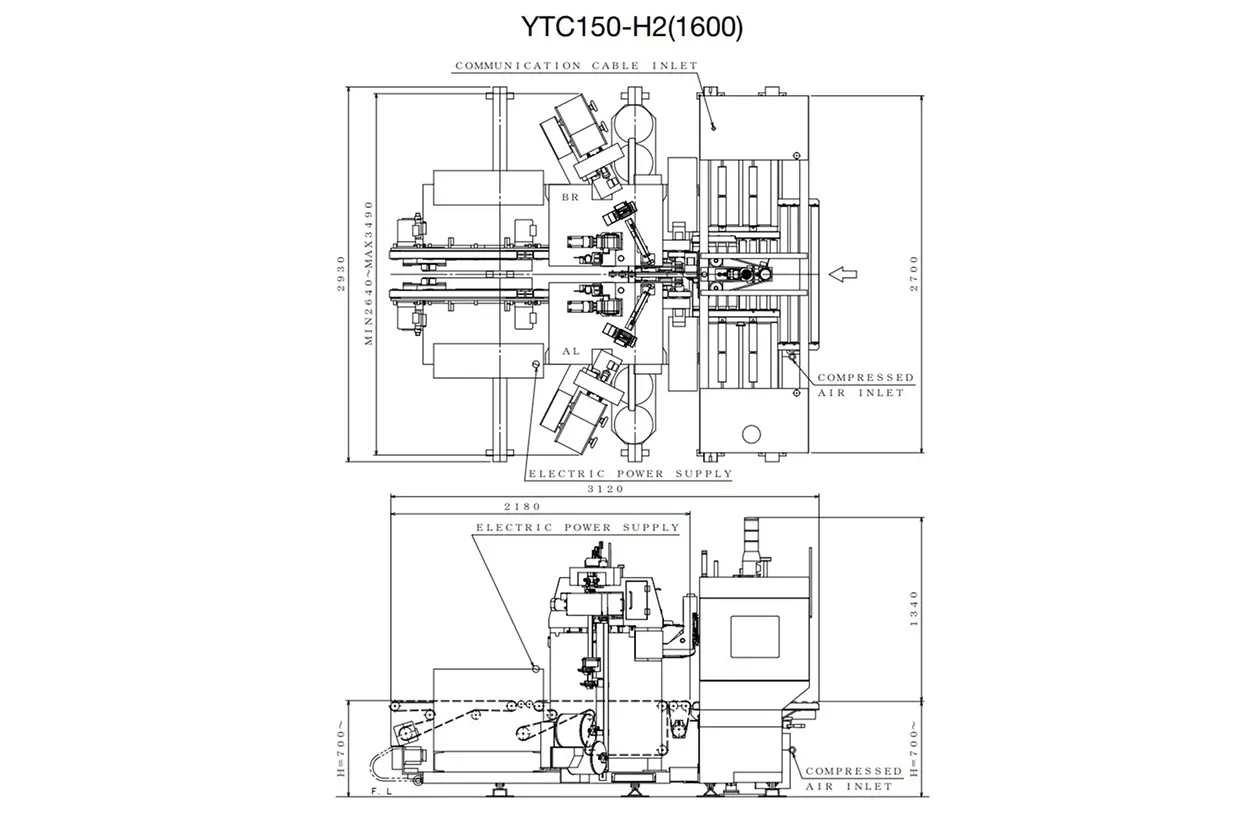

L:3,120 W:3,390 H:2,040~
Feed-in: 50~80m/min
Feed-out: 50~80m/min
700mm
Standard
Standard
Standard
Option
Standard
Option
